In this chapter, we will delve into the catalogs of existing Smart terminal devices and explore their distinct specifications to understand where our solutions can be deployed.
SIBS Smart Terminals Catalog
This section refers to a catalog of terminal devices offered by SIBS. These terminals can be acquired directly through SIBS.
|
|
PED |
SmartPOS |
SmartPOS |
SmartPOS |
SmartPOS |
SmartPOS |
|
|
|
|
|
|
|
|
|
Device |
Newnote ME 30S* |
Nexgo N5* |
Castles S10000F2 basic* |
Castles S1F3 |
Castles S1U2 |

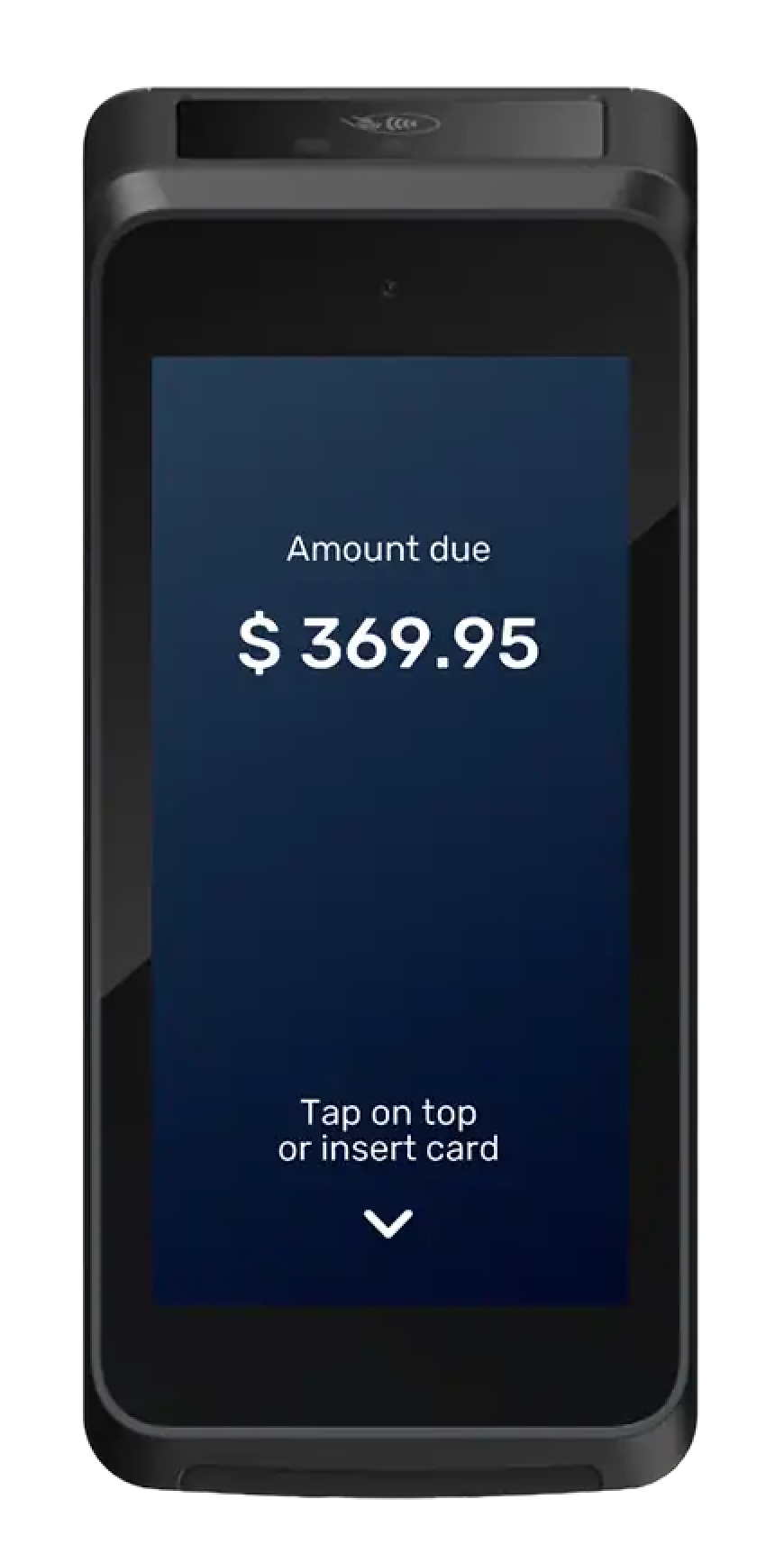

Castles S1F4 Pro |
|
Operating system |
|
Android 7.X |
Android 9.X |
Android 12.X |
Android 10.X |
Android 13 |
|
Processing |
|
Quad-Core 1.1Ghz |
Quad-Core 1.3 Ghz |
Quad-Core 2.0GHz |
Quad-Core 1.3 Ghz |
A53 Octa-Core 2.4GHz |
|
Memory |
|
1GB RAM + 8HB ROM |
2 GB RAM + 16GB ROM |
2 GB RAM + 32GB ROM |
2GB RAM + 16GB ROM |
32GB Flash + 2GB RAM |
|
Card reader |
Chip&Pin, Stripe Reader, Contactless |
Chip&Pin, Stripe Reader, Contactless |
Chip&Pin, Stripe Reader, Contactless |
Chip&Pin, Stripe Reader, Contactless |
Chip&Pin, Stripe Reader, Contactless |
Smart Card, Stripe Reader, Contactless |
|
Communication |
Bluetooth |
Bluetooth and Wi-fi up to 4G |
Bluetooth and Wi-fi up to 4G |
Bluetooth and Wi-fi up to 4G |
Bluetooth and Wi-fi up to 4G |
Bluetooth and Wi-fi up to 4G |
|
Battery (mAh) |
4700 mAh |
5200 mAh |
6000 mAh |
2600mAh |
– |
6000 mAh |
|
Camera |
|
Camera: 5MP & 2MP |
Camera: 5MP & 2MP |
Camera: 5MP & 2MP |
|
Camera: 2MP |
|
Audio |
|
1x Speaker |
1x Speaker |
1x Speaker |
|
1x Speaker |
Manufacturers Smart Terminal Catalog
This section refers to a catalog of terminal devices directly offered by the Manufactures themselves. These terminals are acquired directly through the manufacturer, which is responsible for the setup and maintenance.
|
|
SmartPOS |
SmartPOS |
SmartPOS |
|
|
|
|
|
|
Device |
Ingenico Axium DX8000-2 |
Ingenico Axium DX4000 |
Ingenico Axium DX4000 CT |
|
Operating system |
Android 10.X |
Android 10.X |
Android 10.X |
|
Processing |
Quad-Core 1.3 Ghz |
Quad-core 1.4GHz |
Quad-core 1.3GHz |
|
Memory |
1GB RAM + 8GB ROM |
8GB Flash, 1GB RAM |
8GB Flash, 1GB RAM, 16GB Flash , 2GB RAM (optional) |
|
Screen |
5.5″ HD |
5’’ HD |
5’’ HD |
|
Card reader |
Chip&Pin, Striper reader, Contactless |
Chip&Pin, Striper reader, Contactless |
Chip&Pin, Striper reader, Contactless |
|
Communication |
Bluetooth and Wi-fi up to 4G |
Bluetooth and Wi-fi up to 4G |
Bluetooth and Wi-fi up to 4G |
|
Battery (mAh) |
2600 mAh |
4720 mAh |
2200 mAh |
|
Camera |
Camera 5MP & 0.3MP |
Camera 0.3M and barcode scanner |
|
|
Audio |
1x Speaker |
1x Spearker 1xBuzzer 1xMicrophone |
1x Spearker 1xBuzzer 1xMicrophone |
|
|
SmartPOS |
SmartPOS |
SmartPOS |
SmartPOS |
|
|
|
|
|
|
|
Device |
NewNote N910 Pro |

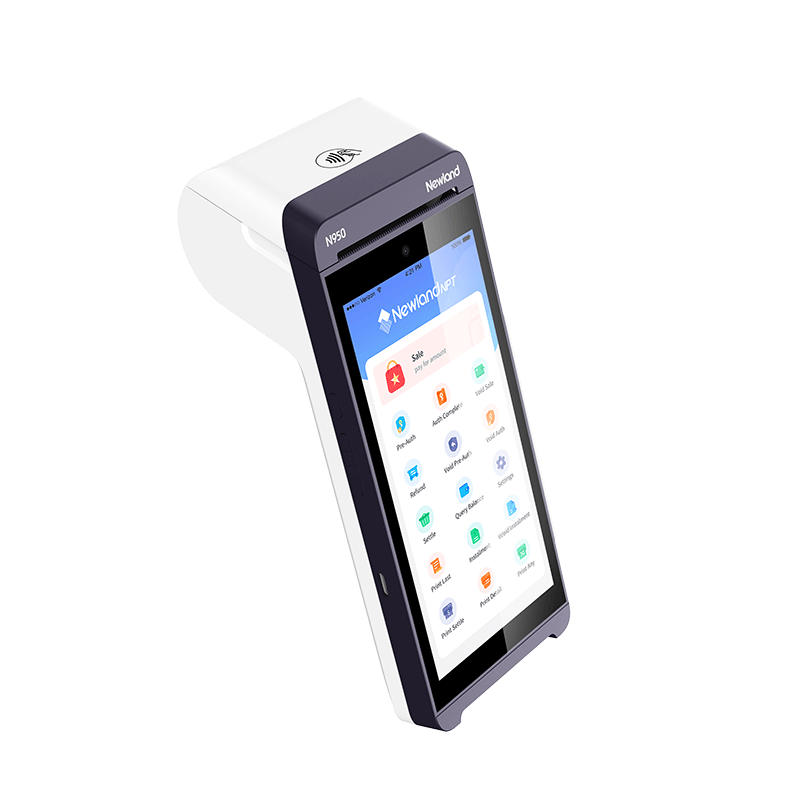

NewNote N950 A52 |
NewNote N950S |
PAX A920 Pro |
|
Operating system |
Android 10.X |
Android 12.X |
Android 12.X |
Android 10.X or 8.X |
|
Processing |
Quad-Core 1.4 Ghz |
Quad-core 2.0 GHz |
Quad-core 2.0 GHz |
Quad-Core, 1.4GHz |
|
Memory |
1GB RAM + 8GB ROM |
2GB RAM, 16GB FLASH |
2GB RAM, 8GB FLASH |
1GB RAM,
8GB FLASH, |
|
Screen |
5.5″ LCD |
5.99″ HD |
5″ LCD |
5.5″ HD |
|
Card reader |
Chip&Pin, Stripe reader, Contactless |
Chip&Pin, Stripe reader, Contactless |
Chip&Pin, Stripe reader, Contactless |
Chip&Pin, Stripe reader, Contactless |
|
Communication |
Bluetooth and Wi-fi up to 4G |
Bluetooth and Wi-fi up to 4G |
Bluetooth and Wi-fi up to 4G |
Bluetooth and Wi-fi up to 4G |
|
Battery (mAh) |
5200 mAh |
2600mAh |
2600mAh |
5150mAh |
|
Camera |
Camera 5MP & 0.3MP |
Camera 5 MP & 0.3MP |
Camera 5MP & 0.3MP |
Camera 5MP |
|
Audio |
1x Speaker |
1x Speaker |
1x Speaker |
1x Speaker 1xBuzzer 1xMicrophone |
|
|
SmartPOS |
SmartPOS |
SmartPOS |
|
|
|
|
|
|
Device |
Newland 750 |
PAX IM30 PCI 6 |
PAX A35 |
|
Operating system |
Android 12 |
Android 10 |
Android 10 |
|
Processing |
Quad-core A53 2.0 GHz |
Quad-core ARM Cortex-A53 1.6GHz |
ARM Cortex A53 |
|
Memory |
2GB RAM, 16GB Flash 4GB RAM, 64 GB Flash (optional) |
8GB Flash + 2GB LPDDR4 RAM |
1GB DDR + 8GB Flash |
|
Screen |
5″ HD |
5” HD |
4” WVGA |
|
Card reader |
Chip&Pin, Stripe reader, Contactless |
Chip&Pin, Stripe reader, Contactless |
Chip&Pin, Stripe reader, Contactless |
|
Communication |
Bluetooth and Wi-fi up to 5G |
Bluetooth and Wi-fi up to 5G |
Bluetooth and Wi-fi up to 5G |
|
Battery (mAh) |
3600mAh 5200mAh |
N.A. |
N.A. |
|
Camera |
Frontal: 0.3MP, 2MP Rear: 5MP, 8MP |
2MP |
Frontal: 0.3MP – 5MP |
|
Audio |
1x Speaker, 1x Microphone |
1x Speaker |
1x Speaker, 1x Jack |
Would you like to have your Android Terminal joining this ecosystem?
