SEPA Direct Debit (SEPA DD) is a payment method that enables merchants to collect euro-denominated payments directly from a customer’s bank account within the Single Euro Payments Area (SEPA)

It is based on a mandate, where the customer (Debtor) authorizes the merchant (Creditor) to initiate collections. Both the Debtor and the Creditor must hold accounts within the SEPA zone.

SEPA Direct Debit supports two schemes:

• CORE – for consumers
• B2B – for business-to-business transactions

Payment Method Overview

Payment Method	Category	Countries	Currencies	Features	Integrations
SEPA DD (via Tink)	Bank Debit	Europe (SEPA)	EUR	Tink – based Open Banking, Recurring payments	Payment Form
SEPA DD (via iDEAL)	Bank Debit	Netherlands	EUR	iDEAL – based authentication	Payment Form, API

Feature	SEPA DD via Tink	SEPA DD via iDEAL
Geographic scope	SEPA countries	Netherlands only
Mandate type	CORE / B2B	CORE only
Customer country	Flexible	Must be NL
Billing address	Recommended	Mandatory (Dutch context)
Integration type	Payment Form	Payment Form + API

Choose Your Integration Mode

Before starting the integration, the merchant must first select the integration approach.

This selection is defined outside the SEPA DD specification and is covered in the dedicated integration documentation.

Please refer to:

• Payment Form Integration Guide
• API Integration Guide

Integration Model	Description
Hosted Payment Form	SIBS manages UI and payment execution flow
Server-to-Server API	SIBS manages UI and payment execution flow

This choice is not part of the API request. It defines how the Checkout response will be consumed.

How it Works

The integration is always initiated via the Checkout API, which creates a payment session and returns the data required to continue the flow.

From that point onward, the execution depends on the integration model selected during onboarding (Payment Form or API S2S).

Integration Flow

1. Create Payment Session (Checkout API)
2. Execute Payment
3. Track Mandate Status (Status API)
4. Monitor Collection Status
5. Optional: Webhooks for asynchronous updates

Step 1 – Create Payment Session

This is the main entry point for SEPA DD transactions, regardless of provider (Tink or iDEAL).

This step creates a payment session and defines:

• merchant configuration
• customer identity
• transaction details
• mandate configuration

Endpoint

Environment	URL	Method & Endpoint
PROD	api.sibsgateway.com	POST api/version-id/payments
TEST	stargate.qly.site[1|2].sibs.pt	POST api/version-id/payments

Request Headers

Field	Type	Description
Content-Type	String	application/json
Authorization	String	Bearer token
x-ibm-client-id	String	Client identifier (onboarding provided)

Core Request Structure

The Checkout request is composed of 4 mandatory blocks:

• merchant
• customer
• transaction
• mandate

1.1 Merchant Object (Mandatory)

Defines the merchant context executing the transaction.

Field	Type	Condition	Description	Example
merchant.terminalId	String (max 10 numeric)	Mandatory	Merchant terminal	47215
merchant.channel	string	Mandatory	Sales channel	WEB
merchant.transactionId	string (max 1000)	Mandatory	Unique reference	987635435
merchant.transactionDescription	String (max 4000)	Optional	Context	order #123

1.2 Transaction Object (Mandatory)

This is the critical block for payment execution configuration.

Key fields:

Field	Type	Condition	Description	Example
transaction.transactionTimestamp	DateTime	Mandatory	Timestamp ISO8601	2026-04-24T13:40:08Z
transaction.description	String	Optional	Transaction short description.	purchase
transaction.moto	Boolean	Optional	Indicates if is a Mail Order Telephone Order.	false
transaction.paymentType	String	Optional	Type of payment used by the client. Possible values are: “PURS” – Purchase, “AUTH” – Authorisation, “CAPT” – Capture, “CAUT” – Authorisation Cancellation, “RFND” – Refund, “RVSL” – Reversal, “STIQ” – Status Inquiry.	AUTH
transaction.amount.value	Number	Mandatory	Transaction amount. For standard SEPA Direct Debit flows, this value must be set to 0. Exception: When using [“SPDD”, “iDEAL”], the amount must be greater than 0, as iDEAL does not support zero-value transactions.	0
transaction.amount.currency	String	Mandatory	Currency used in the transaction.	EUR
transaction.paymentMethod	Array	Mandatory	Determines how the SEPA Direct Debit flow is executed. [“SPDD”] triggers a SEPA DD flow using Tink for bank authentication. [“SPDD”,”IDEL”] adds iDEAL to the authentication journey, enforcing a CORE mandate and NL-based customer data.	[“SPDD”]

Payment Method Behavior (CRITICAL DECISION POINT)

Tink Flow

If:

</> JSON
"paymentMethod": ["SPDD"]

This configuration enables a SEPA Direct Debit flow where bank authentication is performed through Tink (Open Banking).

From an integration perspective:

• The customer authenticates with their bank during checkout.
• Bank account data is collected via provider flow.
• Mandate creation is supported by authentication result.

Integrator responsibilities:

• Provide complete customer data.
• Ensure mandate object is correctly defined.
• Continue flow using Checkout response data.

iDEAL Flow

If:

</> JSON
"paymentMethod": ["SPDD", "IDEL"]

This configuration introduces iDEAL as the authentication rail within the SEPA DD flow.

From an integration perspective:

• The customer proceeds through the provider authentication journey.
• Identity validation occurs within provider journey.
• Mandate is still created as part of SEPA DD lifecycle.

Integrator responsibilities:

• Ensure mandate.serviceType = CORE
• Provide customer data aligned with NL context.
• Enforce NL address constraints.

This configuration is intended for Netherlands-based payment flows where iDEAL is part of the checkout experience.

1.3 Customer Object (Mandatory)

Defines the customer identity and addresses required for risk validation and payment execution.

Key fields:

Field	Type	Condition	Description	Example
customer.customerInfo.customerName	String	Mandatory	Customer name.	Test Name
customer.customerInfo.customerEmail	String	Mandatory	Customer E-mail	email@provider.com
customer.customerInfo.customerLanguage	String	Conditional	Customer language. ISO 639-1 Format. Must be fulfilled if intended Payment Method (Request Body.transaction.paymentMethod) to proceed payment is one of: “IDEL” – “iDEAL”;	NL
customer.customerInfo.customerPhone	String	Conditional	Phone number of the customer formatted in the International E.164 standard, starting with plus (+) symbol. E. 164 numbers can have a maximum of fifteen digits and are usually written as follows: [+][country code][subscriber number including area code] Must be fulfilled if intended Payment Method (Request Body.transaction.paymentMethod) to proceed payment is “BNPL” or “MBWAY”.	+351919191919

Billing Address (Mandatory)

Field	Type	Condition	Description	Example
customer.customerInfo.billingAddress.street1	String (Max70Text)	Mandatory	First line of the billing address (street name and number)	“Damrak 1”
customer.customerInfo.billingAddress.street2	String (Max70Text)	Mandatory	Additional address information (e.g., apartment, floor)	“Floor 2”
customer.customerInfo.billingAddress.city	String (Max35Text)	Mandatory (iDEAL)	City of the billing address	“Amsterdam”
customer.customerInfo.billingAddress.postcode	String (Max16Text)	Optional (Mandatory if available)	Postal code	“1012LG”
customer.customerInfo.billingAddress.country	String (ISO 3166-1 alpha-2)	Mandatory	Country code	“NL”

Shipping Address (Optional)

Used only for in-person deliveries.

Fields	Type	Condition	Description	Example
customer.customerInfo.shippingAddress.street1	String (Max70Text)	Mandatory	First line of the shipping address	“Herengracht 10”
customer.customerInfo.shippingAddress.street2	String (Max70Text)	Mandatory	Additional shipping address information	“Unit 5A”
customer.customerInfo.shippingAddress.city	String (Max35Text)	Mandatory (iDEAL)	City of the shipping address	“Amsterdam”
customer.customerInfo.shippingAddress.postcode	String (Max16Text)	Optional (Mandatory if available)	Postal code	“1015BK”
customer.customerInfo.shippingAddress.country	String (ISO 3166-1 alpha-2)	Mandatory	Country code	“NL”

1.4 mandate – Object (Mandatory)

mandate	mandate	Conditional	Mandate details information Remark: only to be filled when Merchant wants to offer SEPA DD as payment method	–
mandate.mandateId	String (Max35Text)	Mandatory	Identification of the Direct Debit mandate resource. It refers to Debit Authorisation Number.	mandateID
mandate.mandateDescription	String (Max256Text)	Mandatory	Description of the Direct Debit mandate resource’s context.	mandateDescription
mandate.frequency	String (Exact4Text)	Mandatory	Regularity with which instructions are to be created and processed. “OOFF” – “One-Off” (Direct debit instruction where the debtor’s authorisation is used to initiate one single direct debit transaction) “RCUR” – “Recurring” (Direct debit instruction where the debtor’s authorisation is used for regular direct debit transactions initiated by the creditor)	‘OOFF’
mandate.serviceType	String (Exact4Text)	Mandatory	Identification of the SEPA Direct Debits service related to the specific Direct Debit Mandate. It can be fulfilled with the following values: “CORE” when it refers to SEPA DD CORE service; “BTOB” when it refers to SEPA DD B2B service.	‘CORE’

Request Example – Tink-based SEPA DD

</>JSON
{
  "merchant": {
    "terminalId": "1000536",
    "channel": "web",
    "merchantTransactionId": "trx123",
    "transactionDescription": "order 123"
  },
  "transaction": {
    "transactionTimestamp": "2026-04-24T13:41:08Z",
    "paymentType": "AUTH",
    "amount": {
      "value": 0,
      "currency": "EUR"
    },
    "paymentMethod": ["SPDD"]
  },
  "customer": {
    "customerInfo": {
      "customerName": "Test Name",
      "customerEmail": "email@provider.com"
    }
  },
"mandate": {
        "mandateId": "mandateID",
        "mandateDescription": "mandateDescription",
        "frequency": "OOFF",
        "serviceType": "CORE"  }
}

Request Example – iDEAL-based SEPA DD

</>JSON
{
  "transaction": {
    "amount": {
      "value": 0.01,
      "currency": "EUR"
    },
    "paymentMethod": ["SPDD","IDEL"]
  }
}

Response – Checkout API

Once the Checkout request is successfully processed, the API returns a response that represents the payment session created.

This response is essential to:

• identify the transaction
• proceed with payment execution
• track the payment lifecycle

Field	Type	Condition	Description	Example
transactionID	String (Max36Text)	Always	Unique identifier of the transaction. Must be stored for tracking and status queries	TECByGFuB7yaFta19hua
transactionSignature	String	Always	Security signature associated with the transaction	eyJ0eElkIjoiVEVD…
amount.value	Number (double)	Always	Transaction amount. ⚠️ Represents the transaction amount. For SEPA Direct Debit, this value corresponds to the actual transaction amount.	0.01
amount.currency	String (Currency Code – ISO 4217 Alpha-3 Code).	Always	Currency of the transaction	EUR
paymentMethodList	Array	Always	List of payment methods available for execution	[“IDEL”,”SPDD”]
formContext	String	Conditional (Payment Form)	Encoded data required to initialise the hosted payment execution experience	eyJQYXltZW50TWV0aG9kIj…
mandate.mandateId	String (Max35Text)	Conditional (SEPA DD)	Unique identifier of the generated SEPA mandate	v8t58W2RpGDaDbESMrnMhYGZdixsHUDZUkC
mandate.mandateDescription	String (Max254Text)	Mandatory	Description of the Direct Debit mandate resource’s context.	“short information”
mandate.frequency	String (Exact4Text)	Conditional (SEPA DD)	Mandate frequency (OOFF or RCUR)	OOFF
mandate.serviceType	String (Exact4Text)	Conditional (SEPA DD)	SEPA scheme used (CORE or B2B)	CORE
returnStatus.statusCode	String	Always	Operation status code (“000” means success)	000
returnStatus.statusMsg	String	Always	Short status message	Success
serviceType	String	Always	Detailed status description	Success

Example Response

</> JSON
{
  "transactionID": "TECByGFuB7yaFta19hua",
  "transactionSignature": "eyJ0eElkIjoiVEVD...",
  "amount": {
    "value": 0.01,
    "currency": "EUR"
  },
  "paymentMethodList": ["IDEL", "SPDD"],
  "returnStatus": {
    "statusCode": "000",
    "statusMsg": "Success",
    "statusDescription": "Success"
  }
}

How to Use the Response

After receiving a successful response:

• Store the transactionID as your main reference
• Use the returned data to proceed with payment execution
• Prepare your system to handle asynchronous updates (status or webhooks)

If you are using a hosted integration model, the response includes the necessary data to initialize the payment execution step

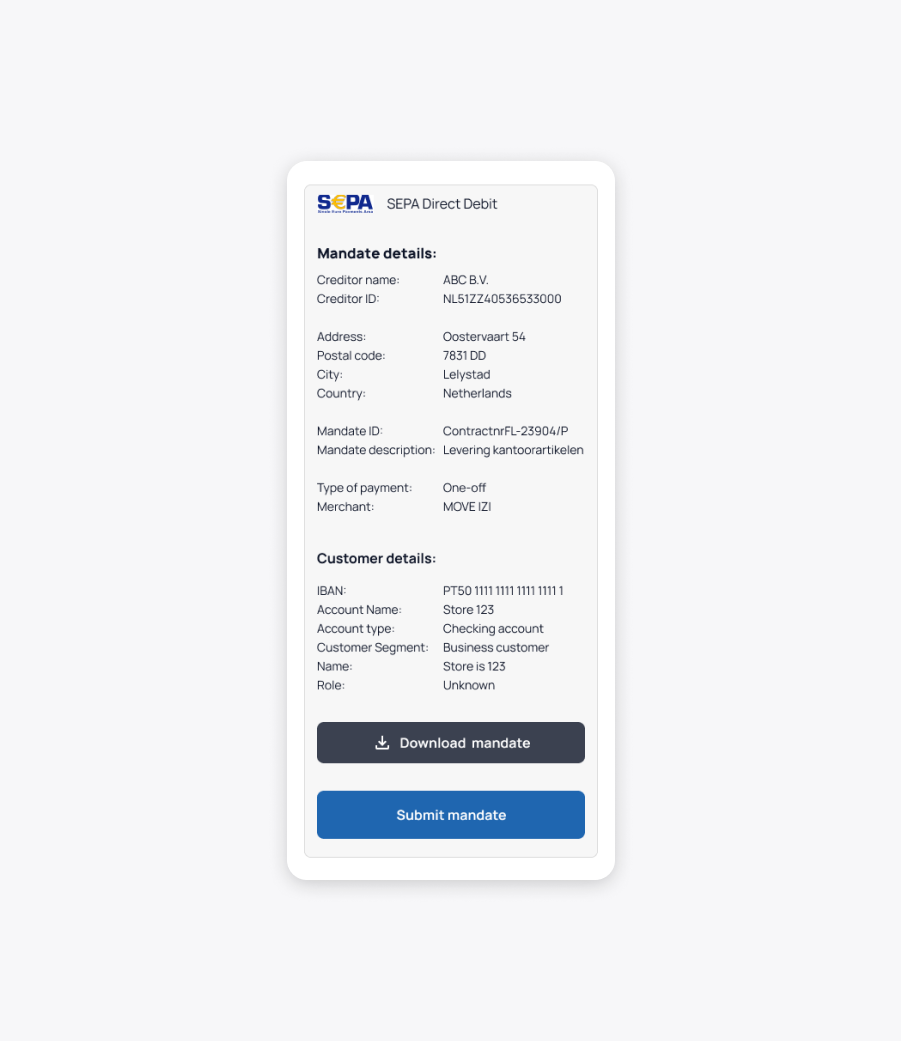

Step 2 – Payment Execution

What happens in practice

• The previously created payment session is used to continue the checkout flow
• The customer proceeds through the provider authentication journey (Tink or iDEAL)
• Mandate authorisation and required banking data collection occur within the provider journey.

Integration perspective

From an integration standpoint:

• No additional API call is required at this stage
• No manual intervention or processing is expected from the integrator
• The entire execution flow is handled by the payment session context returned in Step 1.

Step 3 – Payment Status

After the payment execution flow (Step 2), the SEPA Direct Debit mandate continues asynchronously until the mandate reaches its final lifecycle state.

The merchant can monitor the mandate lifecycle using the Checkout Status API.

How to retrieve the status

Endpoint

Environment	URL	Method & Endpoint
PROD	api.sibsgateway.com	GET /version-id/payments/{transactionId}/status
TEST	stargate.qly.site[1|2].sibs.pt	GET version-id/payments/status

Request Parameters

Type	Field	Format	Condition	Description
PATH	transactionId	String	Conditional	Unique identifier of the transaction
QUERY	merchantTransactionId	String (Max1000)	Conditional	Merchant reference used to retrieve status

What you should monitor

Field	Type	Condition	Description
Content-Type	String	Mandatory	application/json
Authorization	String	Mandatory	Bearer token
x-ibm-client-id	String	Mandatory	Client identifier provided during onboarding

What you should monitor

Field: mandate.mandateStatus

This field represents the lifecycle of the SEPA Direct Debit mandate.

Status values

Status	Meaning
INTT	Initiated
PDNG	Pending
ACTV*	Active
RJCT	Rejected
RFSD	Refused
CNCL	Cancelled

*ACTV represents a successfully activated mandate.

Integration recommendation

You should:

• Store the transactionId returned in Step 1
• Periodically call the Checkout Status API
• Optionally implement webhooks for asynchronous notifications

Step 4 – Additional Information: Collection Status

Collection status monitoring is only applicable when debit collections are initiated against an existing SEPA mandate.

Once a SEPA Direct Debit mandate becomes active, debit collections may be initiated according to the merchant business model.

Collection execution is asynchronous and may expose additional status information through the Checkout Status API.

Collection lifecycle monitoring

The Checkout Status response provides two complementary status fields for SEPA Direct Debit collections.

Field	Purpose
paymentStatus	Final transaction outcome
mandate.mandateCollection.status	Detailed SEPA Direct Debit collection lifecycle

4.1. paymentStatus

Field: paymentStatus

This field represents the consolidated transaction result from the merchant perspective.

Possible values include:

Status	Meaning
PENDING	Transaction still being processed
INPROCESSING	Collection execution in progress
SUCCESS	Collection successfully processed
DECLINED	Collection failed or rejected
ERROR	Technical error

This is the primary field that should be used to determine the final transaction outcome.

4.2. mandate.mandateCollction.status

Field: mandate.mandateCollction.status

This field provides additional operational detail regarding the SEPA Direct Debit collection lifecycle.

Collection Status Values

Status	Meaning
CRTD	Collection created
PDNG	Pending processing
ACSP*	Accepted Settlement In Process(FINAL STATUS)
RJCT	Rejected
RVSL	Reversed

*ACSP represents the successful completion of the SEPA Direct Debit collection process and should be treated as the final successful status.

Integration recommendation

From an integration perspective:

• Store the transactionId returned during Checkout creation
• Monitor transaction updates through the Checkout Status API
• Treat SEPA Direct Debit flows as asynchronous
• Optionally implement webhooks for automated status notifications

Step 5 – Webhooks

SEPA Direct Debit transactions are asynchronous by nature.

Instead of periodically calling the Checkout Status API, merchants may optionally implement webhooks to receive automatic transaction updates.

Webhook notifications can be used to:

• monitor transaction lifecycle changes
• receive payment status updates
• track SEPA Direct Debit collection evolution

For webhook integration details, payload structure and event configuration, please refer to the Webhooks Integration.
