Overview

The Virtual Terminal operation form is the central interface used to manually initiate payment operations within the SIBS Backoffice.

It provides a structured and guided data entry model, ensuring that all required information for a given payment flow is captured with consistency and validation. The form is dynamically adjusted based on the selected payment method and operation type, exposing only the fields that are relevant for the specific scenario.

Across all supported flows, the form is organized into logical blocks:

• Payment Method selection
• Payment Information
• Customer data (optional)
• Billing information (optional)

While the structure remains consistent, the field set and validation rules vary depending on whether the user is performing:

• An MB WAY payment (Purchase)
• An MB WAY Authorization (Mandate Creation)
• A Multibanco Reference Generation

This chapter details:

• The common fields shared across all operations
• The specific fields and behaviors per payment method
• A consolidated reference table summarizing all required and optional inputs

The following vTerminal subchapters provide step-by-step operational procedures for MB WAY payments, MB WAY Authorized Payments (Mandate Creation), and Multibanco Reference generation using these forms.

Understanding these forms is essential to correctly execute operations in the Virtual Terminal, as incorrect or incomplete data directly impacts transaction processing and transaction reconciliation.

Common Fields (All Payment Methods)

The following fields are present across all payment methods and operations.

Payment Method Block

• Payment Method
  Defines the payment channel used for the transaction (e.g., MB WAY or Multibanco Reference).
  This selection dynamically controls the remaining form fields.

Payment Information Block

• Operation
  Defines the type of transaction (e.g., Purchase, Authorization, Generate Multibanco Reference).
• Amount
  Monetary value of the transaction.
• Currency
  Currency of the transaction (typically EUR).
• Merchant Operation ID (merchantTransactionId)
  Merchant-defined identifier used for internal reconciliation and transaction traceability.
• Merchant User ID
  Optional identifier representing the end customer or an internal user reference defined by the merchant.

Customer Block (Optional)

• Full Name
• E-mail
• Date of Birth
• Country Code
• Mobile

These fields enrich the transaction context and may support operational or reconciliation processes.

Billing Address Block (Optional)

• Street
• Postal Code
• Location
• Country
• Ship to a different address

These fields are optional and primarily used for customer data enrichment.

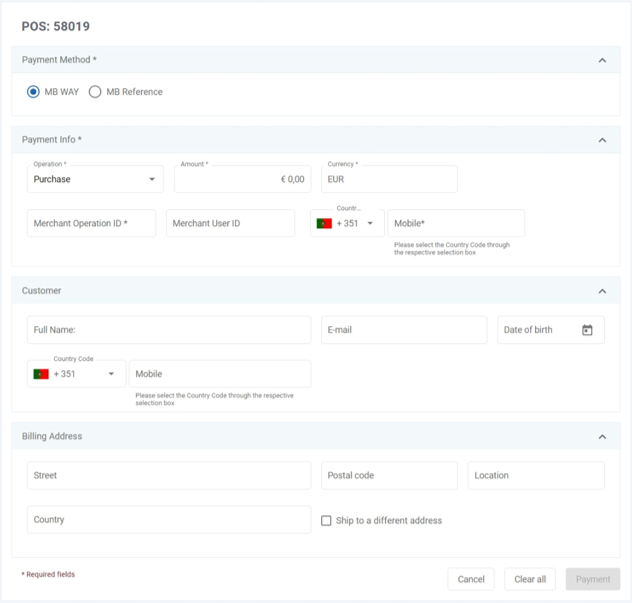

MB WAY (Purchase and Mandate Creation)

For MB WAY operations (Purchase and Mandate Creation), the following additional fields are required:

• Country Code
  Country prefix associated with the mobile number.
• Mobile
  Mobile number of the customer receiving the MB WAY payment request.

Behavior (MBWAY Purchase)

• A payment request is sent to the customer’s MB WAY application.
• The transaction is completed upon user approval on the mobile device.

Behavior (MBWAY Mandate Creation)

• Instead of immediate payment, this operation creates a mandate (authorised payment).
• This mandate can later be used for Merchant Initiated Transactions (MIT).
• No immediate payment collection occurs during mandate creation.

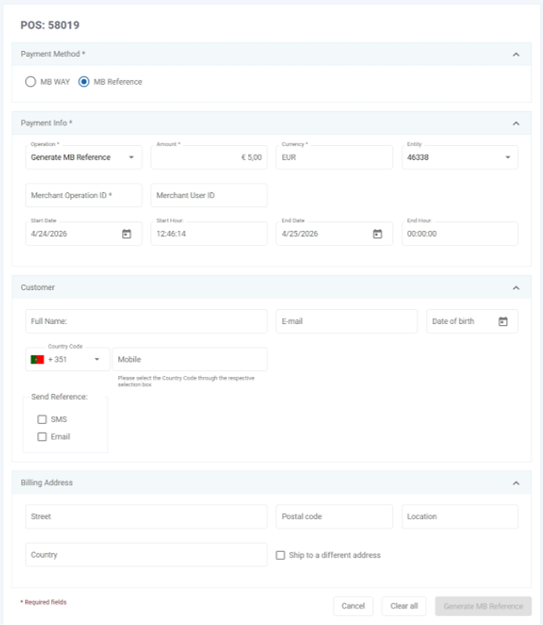

Multibanco Reference – Generation

For Multibanco Reference generation, the form adapts to include:

• Entity
  Entity associated with the generated reference.
• Start Date / Start Hour
  Beginning of the reference validity period.
• End Date / End Hour
  End of the reference validity period.
• Send Reference (optional)
  Delivery mechanism for the reference (e.g., SMS or Email).

Behavior

• A payment reference is generated.
• The customer completes the payment asynchronously using the generated Multibanco Reference through the available Multibanco payment channels.
• The amount defined during reference generation represents the expected payment value, but the actual payment is only completed when the customer performs the payment using the generated reference.

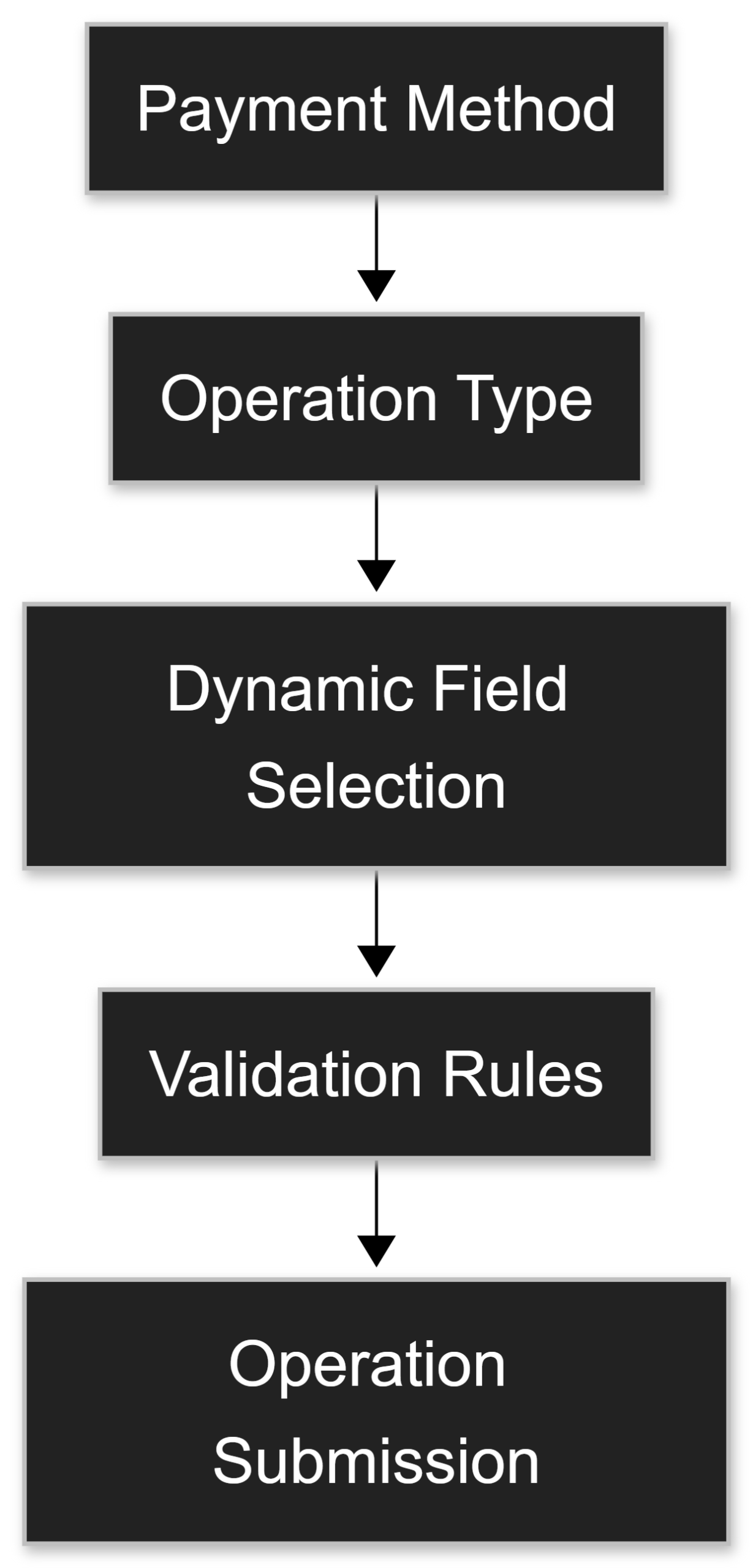

Field Behavior and Conditional Visibility

The Virtual Terminal dynamically adjusts the form based on:

• Selected payment method
• Selected operation type

This dynamic behavior ensures that:

• Only context-relevant fields are displayed
• Mandatory fields are enforced according to the operation
• Validation rules are applied consistently per payment method

This reduces configuration errors and ensures that submitted operations comply with the expected processing requirements of each payment flow.

Summary Table

The following table consolidates all fields across the supported operations.

Block	Field	Description	Mandatory / Optional
Payment Method	Payment Method	Selection of payment method (MB WAY or Multibanco Reference).	Mandatory
Payment Information	Operation	Defines the type of operation to be performed (Purchase, Authorization, Generate Multibanco Reference), which controls the behavior of the transaction.	Mandatory
Payment Information	Amount	Transaction amount.	Mandatory
Payment Information	Currency	Transaction currency (EUR).	Mandatory
Payment Information	Entity	Entity associated with the Multibanco reference generation.	Mandatory for Multibanco Reference
Payment Information	Merchant Operation ID (merchantTransactionId)	Merchant internal operation identifier.	Mandatory
Payment Information	Merchant User ID	Merchant-defined identifier representing the end customer or an internal user reference.	Optional
Payment Information	Country Code	Country code associated with the mobile number used in MB WAY operations.	Mandatory for MB WAY
Payment Information	Mobile	Mobile number associated with the MB WAY account receiving the request.	Mandatory for MB WAY
Payment Information	Start Date	Reference validity start date.	Mandatory for Multibanco Reference
Payment Information	Start Hour	Reference validity start hour.	Mandatory for Multibanco Reference
Payment Information	End Date	Reference validity end date.	Mandatory for Multibanco Reference
Payment Information	End Hour	Reference validity end hour.	Mandatory for Multibanco Reference
Customer	Full Name	Customer full name.	Optional
Customer	E-mail	Customer email.	Optional
Customer	Date of Birth	Customer date of birth.	Optional
Customer	Country Code	Country code associated with the customer’s mobile contact information.	Optional
Customer	Mobile	Customer mobile number.	Optional
Customer	Send Reference	Delivery channel for reference (SMS/Email).	Optional (Multibanco Reference)
Billing Address	Street	Billing street.	Optional
Billing Address	Postal Code	Billing postal code.	Optional
Billing Address	Location	Billing location.	Optional
Billing Address	Country	Billing country.	Optional
Billing Address	Ship to a different address	Indicates that a different shipping address is used.	Optional

Summary

The vTerminal form provides a consistent and controlled interface for manual payment operations, dynamically adapting to each payment method and operation type.

Understanding:

• Which fields are mandatory
• Which fields are context-dependent
• How each payment method affects form structure and behavior

is essential to ensure correct operation execution, avoid validation errors, and guarantee proper transaction processing and reconciliation.
