Overview

This example illustrates a complete end-to-end flow for recurring payments using Credit Card, based on:

• Customer Initiated Transactions (CIT) → initial authorization and consent
• Merchant Initiated Transactions (MIT) → subsequent recurring charges

It demonstrates how the merchant system:

• Performs an initial transaction to establish customer consent and tokenization
• Stores the required identifiers for future use
• Executes recurring payments without customer interaction
• Processes asynchronous updates via Webhooks
• Confirms final transaction states using final webhook paymentStatus values or Status Inquiry when required

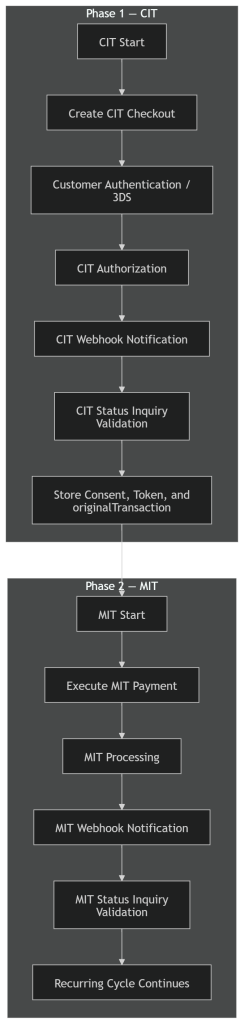

This scenario represents a multi-phase lifecycle, where the initial transaction enables a sequence of future automated payments.

Goal

Enable recurring payments using a credit card, ensuring:

• Proper initial authorization and consent (CIT)
• Secure storage of tokenized payment credentials
• Correct execution of subsequent recurring payments (MIT)
• Reliable transaction validation and reconciliation

Preconditions

Before executing this flow, the following must be in place:

• Valid SPG credentials:
  • terminalId
  • X-IBM-Client-Id
  • Bearer token
• Configured Webhook endpoint
• Backend capable of storing:
  • transactionID
  • originalTransactionId
  • originalTransactionDateTime
  • token (if applicable)
• Recurring business rules defined (frequency, amount, duration)

In Postman, ensure the following variables are configured:

• • terminalId
  • ClientID
  • Bearer
  • host

(See collection root variables in SIBS PAYMENT GATEWAY POSTMAN Collection)

Phase 1 – Initial Transaction (CIT / Authorization & Tokenization)

Step 1 – Create Checkout (CIT)

The merchant creates a checkout for the initial customer-initiated transaction.

Endpoint

POST <ROOT_URL>/payments

Headers

Authorization: Bearer <AuthToken>
X-IBM-Client-Id: <clientId>
Content-Type: application/json
Accept: application/json

Example Request

{
    "merchant": {
        "terminalId": 11111,
        "channel": "web",
        "merchantTransactionId": "ORDER-CIT-0001"
    },
    "transaction": {
        "transactionTimestamp": "2026-04-15T14:00:00.000Z",
        "description": "Initial recurring setup",
        "paymentType": "AUTH",
        "amount": {
            "value": 0.00,
            "currency": "EUR"
        },
        "paymentMethod": [
            "CARD"
        ]
    }
}

Execute this step in Postman using:

Collection Path:

SIBS PAYMENT GATEWAY → Card → Checkout Card

Key Outputs

• transactionID
• formContext
• transactionSignature

The transactionID must be used as the primary correlation identifier across all subsequent steps, including webhook processing and status validation.

Step 2 – Customer Interaction (Consent & Authentication)

The customer is redirected to the hosted payment form.

<script src="<ROOT_URL>/assets/js/widget.js?id={transactionID}"></script>

<form
  spg-context="{formContext}"
  spg-config='{"redirectUrl":"https://merchant.example.com/return"}'>
</form>

At this stage:

• The customer enters card details
• 3DS authentication may occur
• Consent for recurring usage is established

Sensitive cardholder data is collected and processed directly by the hosted SPG payment form, helping reduce PCI DSS scope for the merchant environment.

Step 3 – Handle Customer Redirection

After authorization, the customer is redirected to the merchant.

Important



The redirect does not guarantee that the authorization is finalized.



At this point, the transaction may still be:

• Pending
• Success, if a final paymentStatus is received through webhook or Status Inquiry

Recommended behavior:

• Display a “processing authorization” state
• Trigger backend validation

The backend must use the transactionID obtained during checkout when Status Inquiry API validation is required.

Step 4 – Receive and Process Webhook (CIT)

SPG sends a notification with the authorization result.

Example Payload

{
    "returnStatus": {
        "statusCode": "000",
        "statusMsg": "Success"
    },
    "paymentStatus": "Success",
    "paymentMethod": "CARD",
    "paymentType": "AUTH",
    "transactionID": "s2ExampleTxCIT123",
    "notificationID": "notif-cit-001",
    "token": {
        "tokenType": "Card",
        "value": "TKN123456789"
    }
}

Processing Requirements

• Receive and validate webhook
• Store and process using notificationID
• Persist token and transaction identifiers
• Ensure idempotent processing
• Acknowledge correctly

Response to SPG

{
    "statusCode": "000",
    "statusMsg": "Success",
    "notificationID": "notif-cit-001"
}

The notificationID must match the value received in the webhook payload.

Important



Webhooks provide event-driven updates.



When a webhook contains a final paymentStatus, it may be used for business processing. Status Inquiry should be used when no final webhook is available or when additional confirmation, recovery, or reconciliation is required.

The reconciliation and validation mechanisms described in E. Notifications and Transaction Status should be followed where applicable.

Step 5 – Confirm CIT (Status Inquiry APIs)

The merchant may confirm that the initial CIT authorization was successful using Status Inquiry when no final CIT webhook is available or when additional confirmation, recovery, or reconciliation is required.

Endpoint

GET <ROOT_URL>/payments/{transactionID}/status

Headers

Authorization: Bearer <AuthToken>
X-IBM-Client-Id: <clientId>
Content-Type: application/json
Accept: application/json

Example Response

{
    "returnStatus": {
        "statusCode": "000",
        "statusMsg": "Success"
    },
    "paymentStatus": "Success",
    "paymentType": "AUTH",
    "transactionID": "s2ExampleTxCIT123"
}

The identifiers obtained from the CIT transaction (including transactionID, originalTransaction.id, and originalTransaction.datetime) must be stored and reused for subsequent MIT operations.

Rule

The initial transaction must be confirmed as successful before enabling recurring payments.

Phase 2 – Recurring Transactions (MIT)

Step 6 – Execute MIT Payment

The merchant initiates a recurring charge without customer interaction.

Endpoint

POST <ROOT_URL>/payments/{transactionID}/card/purchase

Headers

Authorization: Digest <transactionSignature>
X-IBM-Client-Id: <clientId>
Content-Type: application/json
Accept: application/json

Example Request

{
    "amount": {
        "value": 19.99,
        "currency": "EUR"
    },
    "merchantInitiatedTransaction": {
        "type": "UCOF",
        "originalTransaction": {
            "id": "s2ExampleTxCIT123",
            "datetime": "2026-04-15T14:00:00.000Z"
        }
    }
}

Execute this step in Postman using:

Collection Path:

SIBS PAYMENT GATEWAY → Card → MIT Purchase

The MIT request must reference the original CIT transaction to ensure proper linkage and compliance with recurring payment rules.

The MIT transaction must comply with the conditions established during the original CIT transaction, including consent scope, transaction type, and applicable regulatory requirements.

Step 7 – Receive Webhook (MIT)

SPG sends a notification with the authorization result.

Example Payload

{
    "returnStatus": {
        "statusCode": "000",
        "statusMsg": "Success"
    },
    "paymentStatus": "Success",
    "paymentType": "MITR",
    "transactionID": "s2ExampleTxMIT123",
    "notificationID": "notif-mit-001"
}

Processing Requirements

• Receive the notification
• Validate authenticity and integrity according to the configured webhook security model (e.g., payload decryption and header validation)
• Store and process the notification using notificationID as a unique identifier
• Ensure idempotent processing
• Acknowledge correctly

Response to SPG

{
    "statusCode": "000",
    "statusMsg": "Success",
    "notificationID": "notif-mit-001"
}

The notificationID must match the value received in the webhook payload.

Important



Webhooks provide event-driven updates.



When a webhook contains a final paymentStatus, it may be used for business processing. Status Inquiry should be used when no final webhook is available or when additional confirmation, recovery, or reconciliation is required.

The reconciliation and validation mechanisms described in E. Notifications and Transaction Status should be followed where applicable.

Step 8 – Confirm MIT (Status Inquiry APIs)

At this point, the transaction may still temporarily remain in intermediate transaction states such as Pending before reaching a final outcome.

The merchant may confirm that the recurring transaction has been successfully completed using Status Inquiry when no final MIT webhook is available or when additional confirmation, recovery, or reconciliation is required.

Endpoint

GET <ROOT_URL>/payments/{transactionID}/status

Headers

Authorization: Bearer <AuthToken>
X-IBM-Client-Id: <clientId>
Content-Type: application/json
Accept: application/json

Example Response

{
    "returnStatus": {
        "statusCode": "000",
        "statusMsg": "Success"
    },
    "paymentStatus": "Success",
    "paymentType": "MITR",
    "transactionID": "s2ExampleTxMIT123"
}

Final State Rule

Final transaction state may be determined from a final webhook paymentStatus or via Status Inquiry when no final webhook is available or when additional confirmation, recovery, or reconciliation is required.

For scenarios requiring extended operational or financial information, integrations may additionally use the Inquiry Details endpoint documented in E.2 Status Inquiry / Get Status.

Inquiry Details complements operational analysis and troubleshooting workflows, but it must not be used as the source for determining the current or final transaction state.

This ensures consistency between:

• Merchant-initiated transaction execution (no customer interaction)
• Webhook notifications
• Backend reconciliation and processing

This ensures consistency between event execution, webhook notifications, and backend reconciliation and processing, particularly in scenarios involving delays, retries, or asynchronous flows.

Expected Final Outcome

• CIT → Success
• MIT → Success

Recurring cycle continues according to business rules.

Implementation Notes

• CIT establishes customer consent and tokenization
• MIT executes without customer interaction
• originalTransaction.id and datetime are mandatory
• Tokenization may be implicit or explicit
• Webhooks may arrive before or after status checks
• Status validation should be used when no final webhook is available or when additional confirmation, recovery, or reconciliation is required
• Failures in MIT must be handled according to retry policies

Operational logs and monitoring systems should correlate transactionID, originalTransaction.id, merchantTransactionId, and notificationID across CIT, MIT, webhook processing, and reconciliation stages.

Retry mechanisms for MIT operations must ensure idempotent processing and avoid duplicate recurring charges.

MIT operations must remain within the consent scope established during the original CIT transaction, including recurrence model, transaction type, and applicable business rules.

Merchant systems must be resilient to out-of-order event delivery and temporary inconsistencies between webhook notifications and status responses.

Temporary issuer-side delays, retry windows, or asynchronous authorization processing may delay the final completion state of recurring transactions.

Use of Postman Collection

The Postman Collections should be used as the execution layer for this example.

Relevant Requests

• Checkout

SIBS PAYMENT GATEWAY → Card → Checkout Card

• Status

SIBS PAYMENT GATEWAY → Card → getStatus

• MIT Purchase

SIBS PAYMENT GATEWAY → Card → MIT Purchase

Use the previously referenced requests to execute each step, validate responses, and simulate different transaction outcomes in sandbox environments.

Recommended Usage

• Execute initial CIT transaction
• Validate CIT status and store identifiers
• Execute MIT transaction
• Validate MIT status
• Simulate success and failure scenarios

Final Notes

This example demonstrates the full lifecycle of recurring payments using SPG.

For production-grade implementations:

• Use API responses for immediate execution flow control
• Use Webhooks for event-driven updates
• Use Status Inquiry APIs when no final webhook is available or when additional confirmation, recovery, or reconciliation is required

This ensures secure, compliant, and reliable recurring payment processing across all transaction cycles.
