Overview

The Status Inquiry response must be interpreted using a dual-layer model, combining:

• Technical execution result (returnStatus)
• Business transaction state (paymentStatus)

These two dimensions represent different aspects of the transaction lifecycle and must always be evaluated together to determine the correct operational outcome.

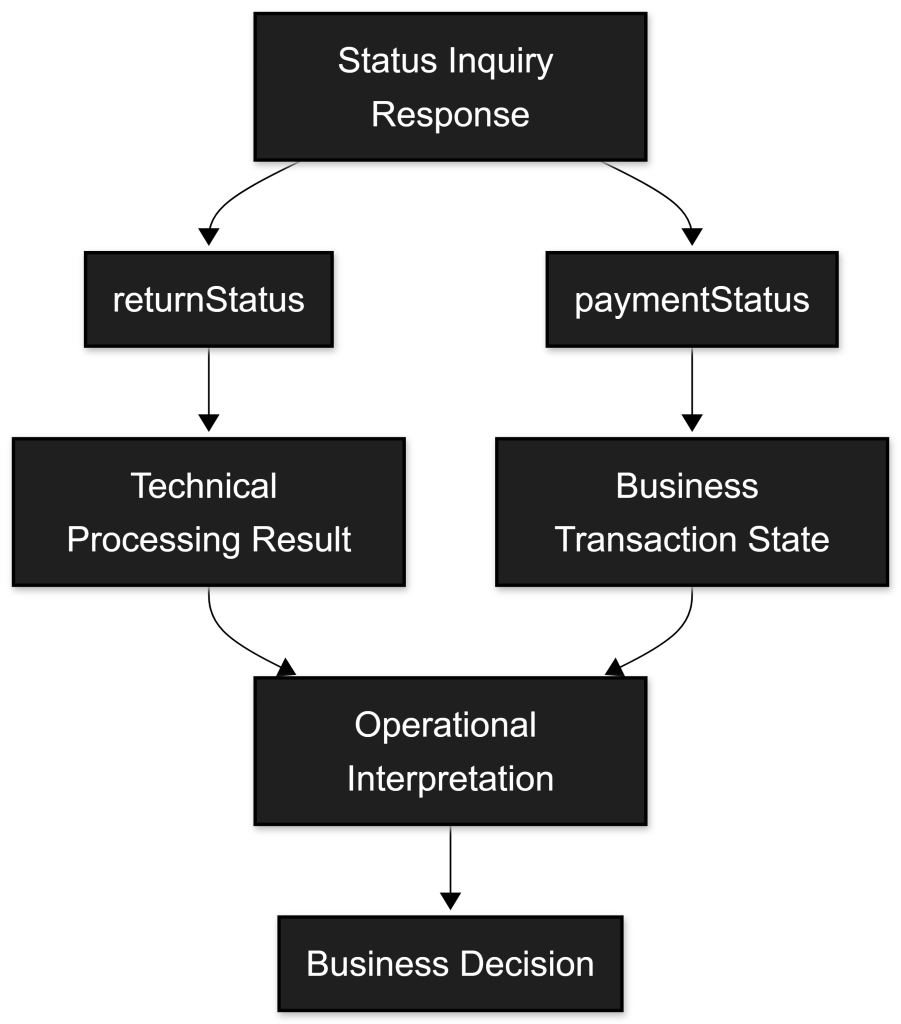

Dual-Layer Status Model

Technical Layer – returnStatus

The returnStatus object represents the technical outcome of the API operation.

It indicates whether the request was:

• Successfully processed
• Rejected due to validation errors
• Affected by system-level issues

Key characteristics:

• statusCode = "000" indicates successful request processing
• Non-zero codes indicate technical or business-level issues
• Codes follow the structure defined in C.5 – Status Codes and Error Codes Catalogue

Business Layer – paymentStatus

The paymentStatus field represents the actual business state of the transaction.

It reflects:

• The progression of the payment lifecycle
• User interaction outcomes
• Final settlement or failure states

This is the primary field for business decision-making.

Core Principle

Both layers must be evaluated together.

Business-critical decisions must always be based on the evaluated combination of both fields, and never on a single dimension in isolation.

paymentStatus Values and Semantics

Success

The transaction has been successfully completed.

Typical meaning:

• Funds have been authorized or captured (depending on payment type)
• No further user action is required

Operational guidance:

• Safe to proceed with business actions (e.g., order fulfillment), subject to merchant-specific validation rules

Pending

The transaction is awaiting completion.

Typical scenarios:

• Waiting for user authorization (e.g., MB WAY push notification)
• Waiting for payment completion (e.g., Multibanco Reference)

Operational guidance:

• Do not treat as final
• Continue polling or wait for webhook notifications

Declined

The transaction has been refused.

Typical scenarios:

• Payment rejected by issuer or user
• Authorization failed

Operational guidance:

• Treat as final
• Do not retry automatically without user intervention

Error

A technical failure occurred during processing.

Typical scenarios:

• System error
• Integration issue
• Temporary platform failure

Operational guidance:

• May be retryable depending on context and returnStatus.statusCode classification (temporary vs permanent)
• Investigate returnStatus.statusCode for root cause

Timeout

The transaction was not completed within the expected time window.

Typical scenarios:

• User did not respond (e.g., MB WAY notification expired)
• External system timeout

Operational guidance:

• Treat as non-successful outcome
• Retry may be possible depending on payment method

For a complete definition of transaction states and transitions, refer to C.3 – Transaction States and Operational Meaning.

Combined Interpretation Matrix

returnStatus.statusCode	paymentStatus	Interpretation	Recommended Action
000	Success	Operation successful and payment completed	Proceed with business flow
000	Pending	Operation successful but awaiting completion	Continue polling / wait for webhook
10.x.xxxx	Declined	Payment refused	Treat as final failure
12.x.xxxx	Error	Technical failure	Investigate and consider retry
000	Timeout	Operation processed but not completed in time	Treat as failed or retry depending on context

State Finality

Not all paymentStatus values represent final states.

Typical Final States

• Success
• Declined

Potentially Final Depending on Context

• Error
• Timeout

Non-Final (Transient) States

• Pending

Important:

• Only final states should trigger irreversible business actions
• Transient states require continued monitoring

Payment-Type Considerations

The interpretation of Success depends on the transaction type:

One-Off Payments

• Success typically means payment is completed

However, operational settlement and downstream financial reconciliation may still occur asynchronously depending on the payment method and processing model.

Two-Step Payments (AUTH → CAPTURE)

• Success after AUTH → authorization completed, funds not yet captured
• Success after CAPTURE → funds successfully captured

Authorized funds may still be subject to authorization validity windows, reversal, or expiration if capture is not performed within the required timeframe.

Recurring Payments

• Success indicates successful execution of a scheduled or initiated charge
• Must be correlated with mandate or token context

Relationship with Webhooks

• Webhooks provide event-based updates
• Status Inquiry APIs provide the current state snapshot

This implies:

• Webhook events may not reflect the latest state
• The Status Inquiry APIs should be used to confirm final outcomes when no final webhook is available or when additional confirmation is required

Error Interpretation Strategy

When handling errors:

• Always inspect:
  • paymentStatus
  • returnStatus.statusCode
• Use statusCode to:
  • Identify root cause
  • Determine retry eligibility
  • Classify error type (business vs technical)

Key Integration Principles

• Always evaluate both returnStatus and paymentStatus
• Never assume statusCode = "000" implies payment success
• Only act on final states
• Implement retry logic for transient states
• Use the Status Inquiry APIs to confirm webhook-based flows

Summary

The Status Semantics model defines how transaction states must be interpreted within the SIBS Payment Gateway.

By combining:

• Technical execution status (returnStatus)
• Business transaction state (paymentStatus)

Integrators can:

• Accurately determine transaction outcomes
• Handle asynchronous flows correctly
• Implement reliable and fault-tolerant payment logic

This model is essential for ensuring correct, consistent, and auditable transaction processing.
