Overview

This section describes the different error patterns that may occur in SIBS Payment Gateway (SPG) integrations.

Errors must be interpreted using the dual-layer model:

• Technical layer → returnStatus.statusCode
• Business layer → paymentStatus (when applicable)

The combination of these fields determines:

• Whether a transaction exists
• Whether it was processed
• What action the integrator must take

For the complete list of error codes and their meaning, refer to C.5 – Status Codes and Error Codes Mapping and its subchapters.

Error classification and handling behavior must follow the interpretation model defined in C.6 – Error Payloads and Handling Guidelines.

Technical Errors (Request Rejected)

Description

Errors where the request is invalid and rejected before processing.

Example (Invalid Request / Missing Data)

{
    "returnStatus": {
        "statusCode": "Exxxx",
        "statusMsg": "Error",
        "statusDescription": "Invalid request, data is missing or is invalid"
    }
}

Interpretation

• Request not processed
• No transaction created
• No paymentStatus

Integrator Action

• Validate request payload:
  • Mandatory fields
  • Amount and currency
  • Terminal configuration (e.g., terminalId = 12345)
• Do not retry without correction

Business Errors (Declined Transactions)

Description

Errors where:

• Request is valid
• Transaction is created
• Payment is refused

Example (Insufficient Funds)

{
    "paymentStatus": "Declined",
    "returnStatus": {
        "statusCode": "Exxxx",
        "statusMsg": "Error",
        "statusDescription": "Insufficient funds"
    },
    "transactionID": "tx_A1B2C3D4"
}

Interpretation

• Transaction exists
• Payment failed at business level
• The specific cause must be interpreted according to the error definitions described in C.5 – Status Codes and Error Codes Mapping and its subchapters.

Integrator Action

• Inform the user
• Allow retry with:
  • Different payment method
  • Different credentials
• Do not retry automatically

Duplicate / Conflict Errors

Description

Errors caused by duplicate submission or conflicting requests.

Example

{
    "returnStatus": {
        "statusCode": "Txxxx",
        "statusMsg": "Error",
        "statusDescription": "Duplicate or conflicting transaction"
    }
}

Interpretation

• A transaction with equivalent business intent may already exist
• Request rejected to prevent duplication

Integrator Action

• Retrieve transaction via Status Inquiry
• Ensure unique merchantTransactionId
• Implement idempotency

For detailed retry and idempotency strategies, refer to F.6.2 – Idempotency and Duplicate Protection.

Temporary Errors (Potentially Retryable)

Description

Errors caused by temporary system conditions.

Example

{
    "returnStatus": {
        "statusCode": "Txxxx",
        "statusMsg": "Temporary error",
        "statusDescription": "SIBS temporary internal error"
    }
}

Interpretation

• Request may not have completed successfully, and the final transaction state may be unknown or only partially processed

Integrator Action

• Retry using a retry with backoff strategy
• Automatic retries must avoid generating duplicate financial operations and should always be combined with reconciliation logic
• If uncertainty remains:
  • Confirm via Status Inquiry or webhook
• Include in reconciliation

Authentication and Authorization Errors

Description

Errors occurring at the security layer.

Example

{
    "returnStatus": {
        "statusCode": "Exxxx",
        "statusMsg": "Error",
        "statusDescription": "Authentication or authorization error"
    }
}

Interpretation

• Request rejected before processing
• Invalid or missing credentials

Integrator Action

• Validate:
  • Authorization headers
  • Client credentials
• Regenerate credentials if needed
• Do not retry automatically without classification and validation

Payment Method-Specific Errors

Description

Errors specific to payment method validation and processing rules.

Card Example (Invalid Card Data)

{
    "paymentStatus": "Declined",
    "returnStatus": {
        "statusCode": "Exxxx",
        "statusMsg": "Error",
        "statusDescription": "Invalid card data"
    }
}

MB WAY Example (Invalid Alias)

{
    "paymentStatus": "Declined",
    "returnStatus": {
        "statusCode": "Exxxx",
        "statusMsg": "Error",
        "statusDescription": "The provided alias is not correct"
    }
}

Multibanco Example (Invalid Currency)

{
    "returnStatus": {
        "statusCode": "Exxxx",
        "statusMsg": "Error",
        "statusDescription": "Invalid currency"
    }
}

Interpretation

• Error depends on payment method constraints
• May occur at validation or processing stage

Integrator Action

• Apply method-specific validation
• Provide clear user feedback
• Avoid generic retry logic

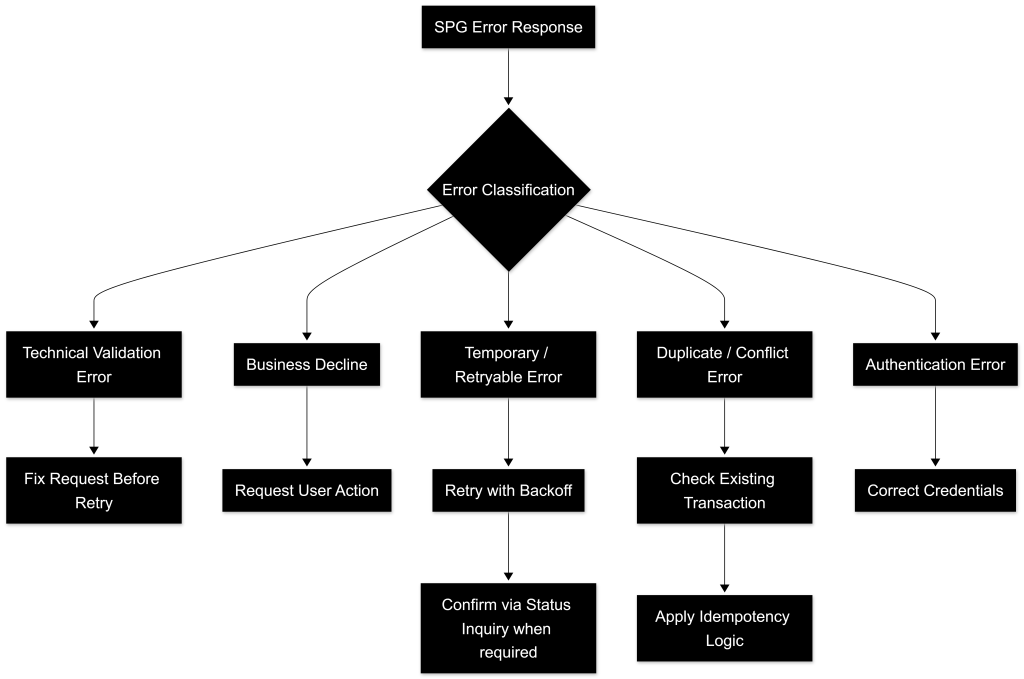

Key Error Handling Rules

• Always evaluate:
  • returnStatus.statusCode
  • paymentStatus (when present)
• Always:
  • Use returnStatus.statusDescription for diagnostics
  • Use Status Inquiry when outcome is unclear
• Never:
  • Retry without classification
  • Treat all errors as retryable
  • Assume Declined is a technical failure

For extended diagnostics and additional transaction context, refer to E.2 – Status Inquiry / Get Status.

Summary

Error handling requires explicit classification and deterministic response strategies.

Each error category implies a different handling approach:

• Validation errors → fix request
• Business declines → user action
• Temporary errors → retry
• Security errors → correct credentials

Correct handling ensures:

• Consistent transaction state management
• Controlled retry behavior
• Reliable production operation
