Overview

This section describes the different success patterns that may occur in SIBS Payment Gateway (SPG) integrations.

A successful outcome must always be interpreted at the business level based on paymentStatus (paymentStatus = "Success"), regardless of whether the flow is:

• Synchronous (immediate finalization), or
• Asynchronous (finalization occurs after initial response)

Understanding these patterns is essential to ensure that integrators:

• Trigger business actions only when the payment is effectively completed
• Correctly handle intermediate states such as Pending
• Align their systems with the actual financial lifecycle of the transaction

For the definition of status codes and their interpretation, refer to C.5 – Status Codes and Error Codes Mapping.

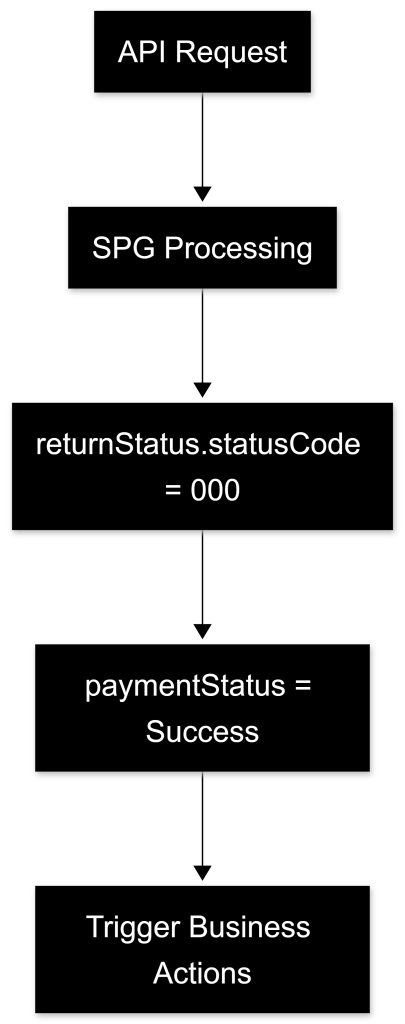

Synchronous Success

Description

In some scenarios, the payment is fully processed and finalized within the initial API response.

This typically occurs when:

• No additional authentication is required (e.g., no 3DS)
• No user interaction is needed after the request
• The payment method supports immediate confirmation

Example

{
    "returnStatus": {
        "statusCode": "000",
        "statusMsg": "Success"
    },
    "paymentStatus": "Success",
    "transactionID": "tx123456789"
}

Interpretation

• The request was successfully processed
• The payment was completed and confirmed
• No further state transitions are expected

Integrator Action

• Mark the transaction as paid
• Trigger downstream processes (e.g., order confirmation, fulfillment)

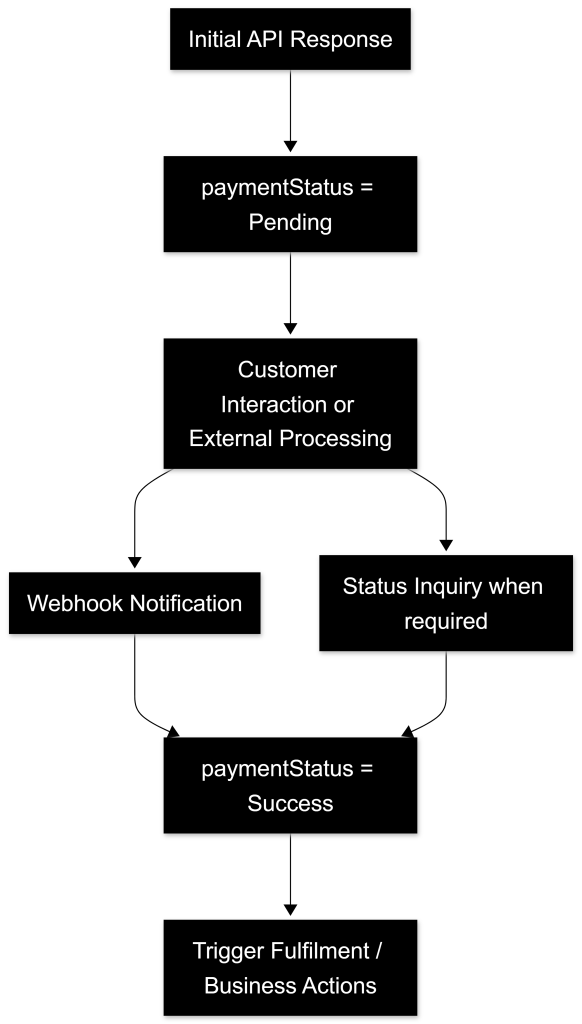

Asynchronous Success (Pending → Success)

Description

Many SPG payment methods follow an asynchronous lifecycle, where the initial response does not represent the final transaction state.

This typically occurs when:

• User interaction is required (e.g., MB WAY approval)
• External systems are involved (e.g., Multibanco payment)
• Additional authentication steps are performed (e.g., 3DS)

Initial Response

{
    "returnStatus": {
        "statusCode": "000"
    },
    "paymentStatus": "Pending",
    "transactionID": "txPENDING123"
}

Final State (Webhook or Status Inquiry)

{
    "returnStatus": {
        "statusCode": "000"
    },
    "paymentStatus": "Success",
    "transactionID": "txPENDING123"
}

Interpretation

• Initial request accepted and processing started
• Final transaction state determined asynchronously
• Payment is only completed when paymentStatus = "Success"

Integrator Action

• Do not treat the initial response as success
• Wait for:
  • Webhook notification (recommended), and/or
  • Status Inquiry confirmation (GET <ROOT_URL>/payments/{transactionID}/status)
• Trigger business actions only after final confirmation

For extended transaction diagnostics and additional transaction context during asynchronous flows, refer to E.2 – Status Inquiry / Get Status.

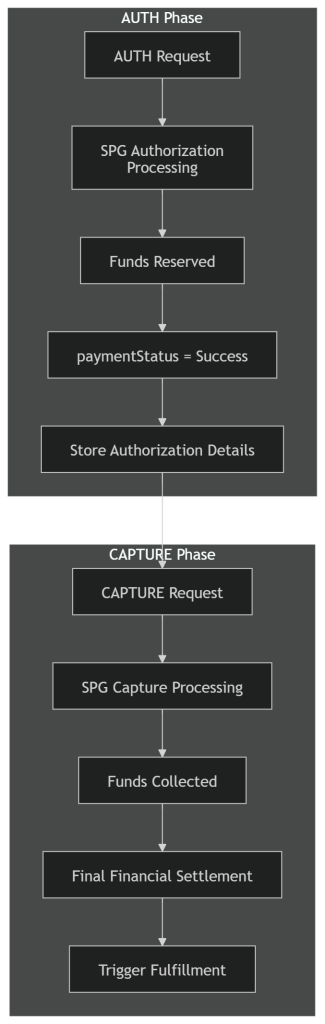

Two-Step Success (AUTH → CAPTURE)

Description

In two-step payment flows, success is achieved in two distinct phases:

1. Authorization (AUTH) → Funds are reserved
2. Capture (CAPTURE) → Funds are collected

This model is commonly used when:

• Fulfillment occurs after a delay
• Final amount confirmation is required
• Risk or inventory validation is needed before capture

For detailed two-step operational flows and lifecycle behavior, refer to D.3 – Two-Step Payments and its related subchapters.

AUTH Response

{
    "returnStatus": {
        "statusCode": "000"
    },
    "paymentStatus": "Success",
    "paymentType": "AUTH",
    "transactionID": "txAUTH123"
}

CAPTURE Response

{
    "returnStatus": {
        "statusCode": "000"
    },
    "paymentStatus": "Success",
    "paymentType": "CAPTURE",
    "transactionID": "txAUTH123"
}

Interpretation

• AUTH success indicates that funds are reserved but not transferred
• AUTH success does not represent final financial settlement of the transaction.
• CAPTURE success indicates that funds are effectively collected

Integrator Action

• After AUTH:
  • Do not consider the payment financially completed
  • Store transaction details for later capture
• After CAPTURE:
  • Mark transaction as fully paid
  • Trigger irreversible business actions (e.g., shipment, service delivery)

Delayed Settlement Success (Reference-Based Payments)

Description

Some payment methods (e.g., Multibanco Reference) involve delayed settlement, where payment completion depends on the customer performing an external action.

Typical flow:

1. Reference is generated
2. Customer completes payment outside the system
3. SPG updates transaction to Success

Interpretation

• Initial state remains Pending until customer completes payment
• Final transaction success may occur minutes, hours, or days after the initial reference generation.

Integrator Action

• Persist transaction in a pending state
• Rely on:
  • Webhooks for real-time updates, and/or
  • Periodic Status Inquiry reconciliation
• Ensure business processes can handle long-lived pending transactions

Key Success Handling Rules

• Only consider a payment successful when:
  • paymentStatus = "Success"
• Always:
  • Evaluate both technical (returnStatus) and business (paymentStatus) layers
  • Support state transitions over time
• Never:
  • Assume success from statusCode = "000" alone, without evaluating paymentStatus
  • Trigger fulfillment on Pending

Summary

Success in SPG integrations is context-dependent and varies by payment flow:

• Some payments complete synchronously
• Others require asynchronous confirmation
• Two-step flows require explicit finalization (CAPTURE)
• Reference-based methods introduce delayed settlement

Correct handling of these scenarios ensures:

• Accurate financial state management
• Proper alignment with payment lifecycle
• Reliable and consistent business operations
